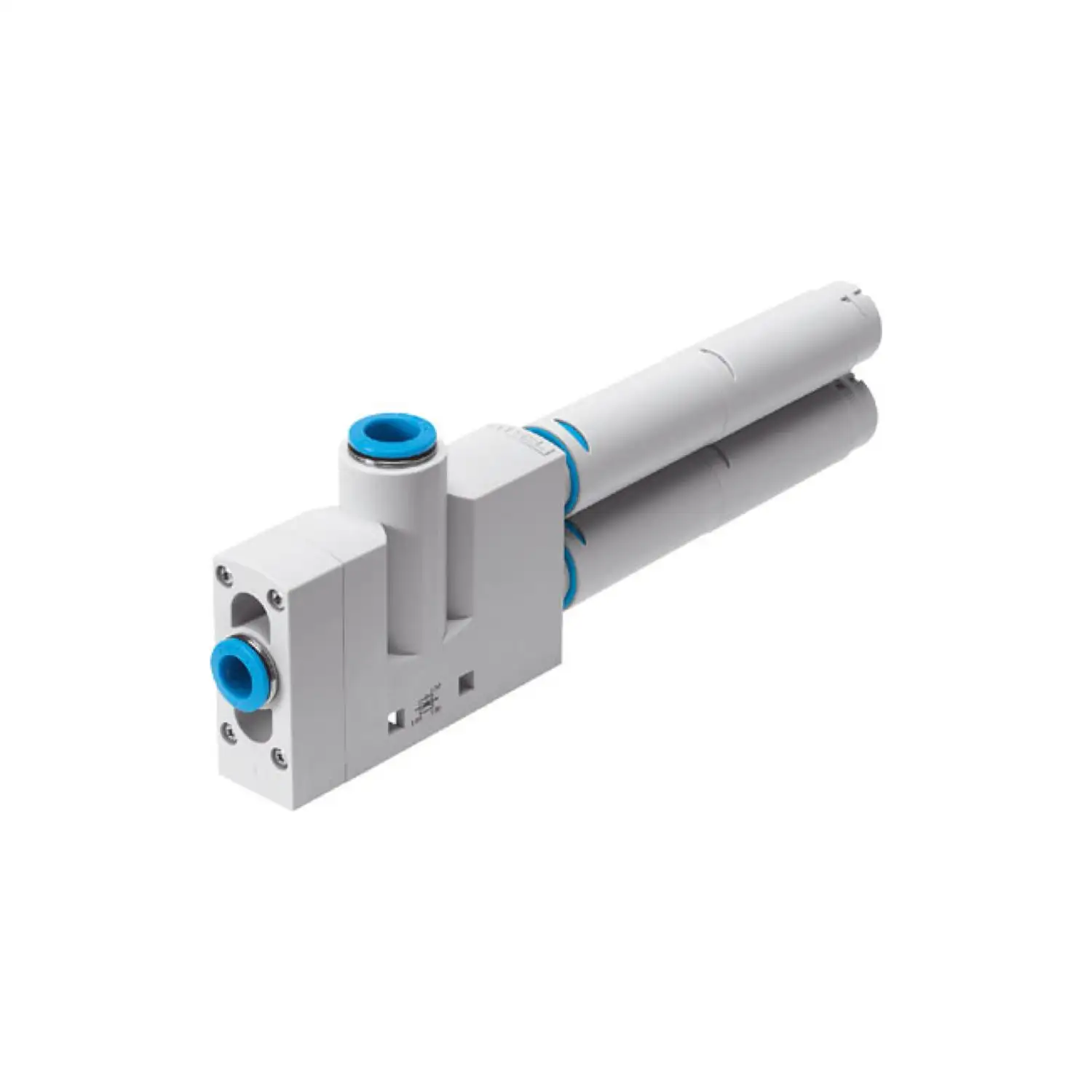

FESTO VN-30-H-T6-PQ4-VQ5-RO2

Description

Nominal width of Laval nozzle 3 mm Width dimension 24 mm Muffler construction type Open Mounting position Any Ejector characteristics High vacuum Standard Integrated function Pneumatic muffler open Structural design T-shape Symbol 00991489 Operating pressure for max. suction rate 3 bar Operating pressure 1 bar … 8 bar Operating pressure for max. vacuum 3.7 bar Max. vacuum 93 % Nominal operating pressure 6 bar Max. suction rate with respect to atmosphere 186 l/min Air supply time at nominal operating pressure 0.1 s Operating medium Compressed air as per iso 8573-1:2010 [7:4:4] Information on operating and pilot media Operation with oil lubrication not possible Corrosion resistance class (CRC) 1 – Low corrosion stress Temperature of medium 0 °c … 60 °c Noise level at nominal operating pressure 78 dB(A) Ambient temperature 0 °c … 60 °c Max. tightening torque 0.8 Nm Product weight 182 g Type of mounting With through-hole With accessories Pneumatic connection 1 QS-10 Pneumatic connection 3 Pneumatic muffler open Vacuum connection QS-12 Note on materials Free of copper and PTFE Contains paint-wetting impairment substances rohs-compliant Seals material NBR Female nozzle material POM Housing material POM-reinforced Muffler material Die-cast aluminum
POM
PU foam
Material of jet nozzle Wrought aluminum alloy
Material of pneumatic fitting Brass
Nickel-plated
