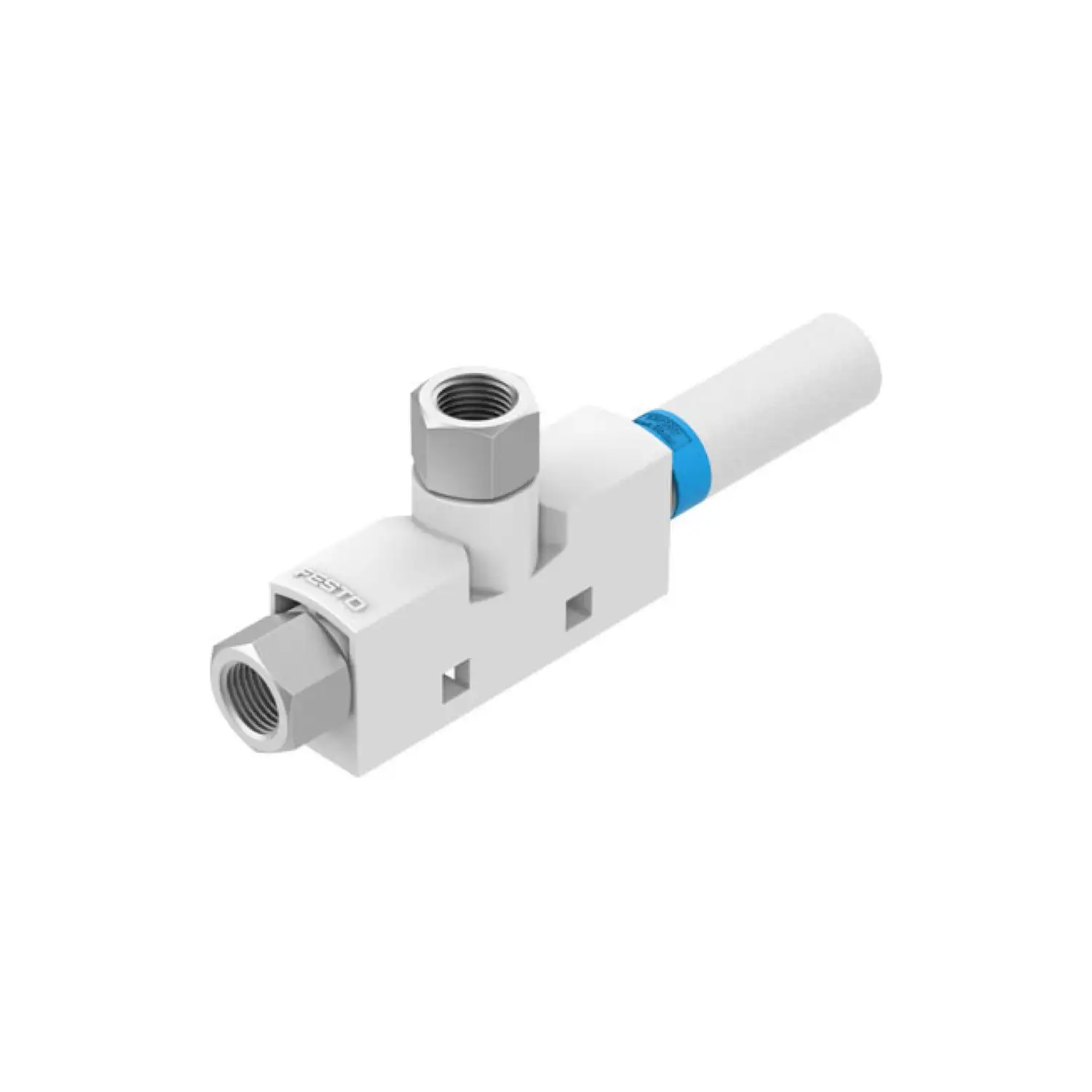

FESTO VN-14-L-T4-PI4-VI5-RO2

Description

Nominal width of Laval nozzle 1.4 mm Width dimension 18 mm Muffler construction type Open Mounting position Any Ejector characteristics High suction rate Standard Integrated function Pneumatic muffler open Structural design T-shape Symbol 00991489 Operating pressure for max. suction rate 8 bar Operating pressure 1 bar … 8 bar Nominal operating pressure 6 bar Max. suction rate with respect to atmosphere 90 l/min Air supply time at nominal operating pressure 0.25 s Operating medium Compressed air as per iso 8573-1:2010 [7:4:4] Information on operating and pilot media Operation with oil lubrication not possible Corrosion resistance class (CRC) 2 – Moderate corrosion stress Temperature of medium 0 °c … 60 °c Noise level at nominal operating pressure 77 dB(A) Ambient temperature 0 °c … 60 °c Max. tightening torque 0.5 Nm Product weight 40 g Type of mounting With through-hole With accessories Pneumatic connection 1 G1/8 Pneumatic connection 3 Pneumatic muffler open Vacuum connection G1/4 Material of connecting thread Wrought aluminum alloy, anodized Note on materials Free of copper and PTFE Contains paint-wetting impairment substances rohs-compliant Seals material NBR Female nozzle material POM Housing material POM-reinforced Muffler material Die-cast aluminum POM PU foam Material of jet nozzle Wrought aluminum alloy
