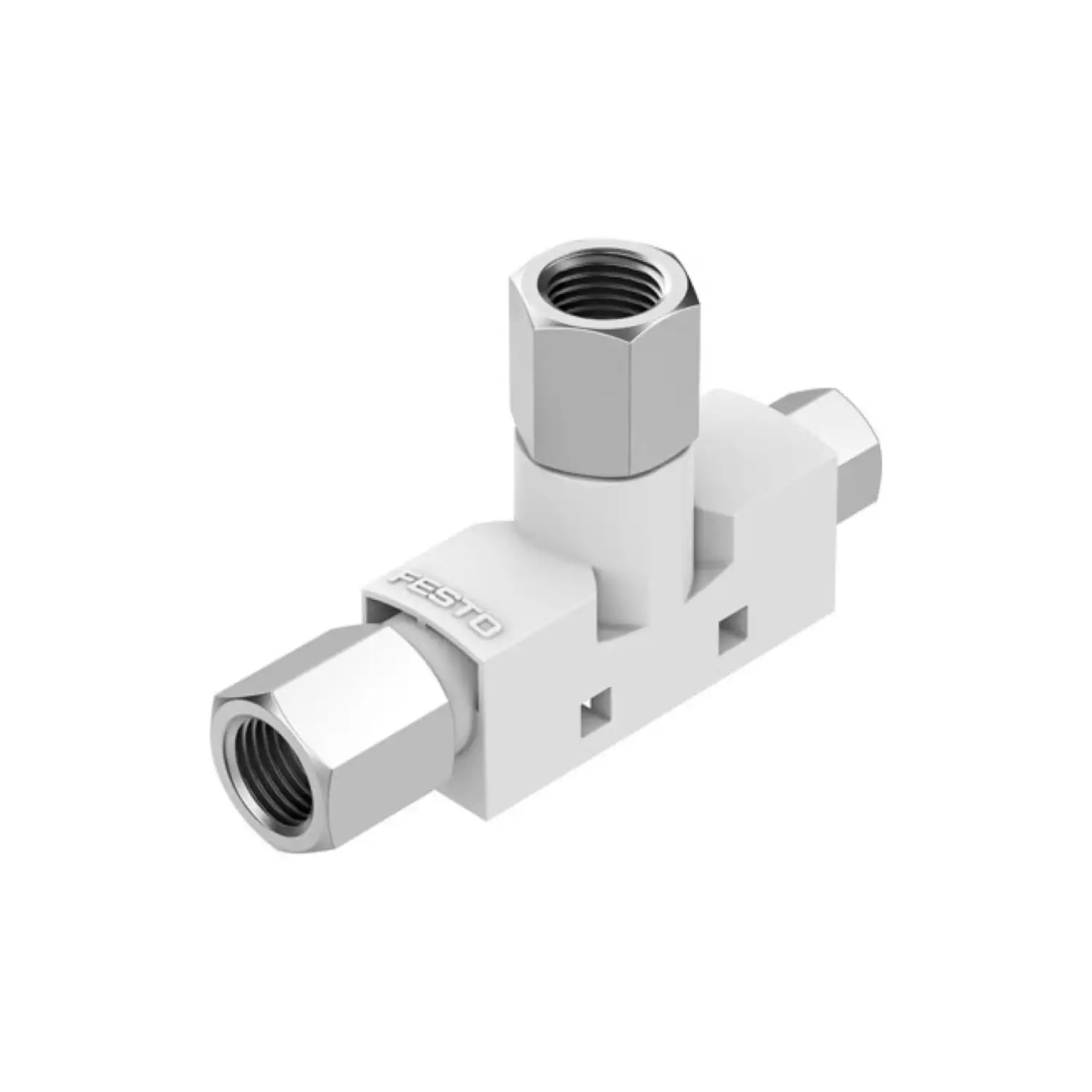

FESTO VN-14-H-T4-PI4-VI5-RI5

Description

Nominal width of Laval nozzle 1.4 mm Width dimension 18 mm Mounting position Any Ejector characteristics High vacuum Standard Structural design T-shape Symbol 00991490 Operating pressure for max. suction rate 5.1 bar Operating pressure 1 bar … 8 bar Operating pressure for max. vacuum 5 bar Max. vacuum 88 % Nominal operating pressure 6 bar Max. suction rate with respect to atmosphere 51.6 l/min Air supply time at nominal operating pressure 0.5 s Operating medium Compressed air as per iso 8573-1:2010 [7:4:4] Information on operating and pilot media Operation with oil lubrication not possible Corrosion resistance class (CRC) 2 – Moderate corrosion stress Temperature of medium 0 °c … 60 °c Ambient temperature 0 °c … 60 °c Max. tightening torque 0.5 Nm Product weight 36 g Type of mounting With through-hole With accessories Pneumatic connection 1 G1/8 Pneumatic connection 3 G1/4 Vacuum connection G1/4 Material of connecting thread Wrought aluminum alloy, anodized Note on materials Free of copper and PTFE rohs-compliant Seals material NBR Female nozzle material POM Housing material POM-reinforced Material of jet nozzle Wrought aluminum alloy
