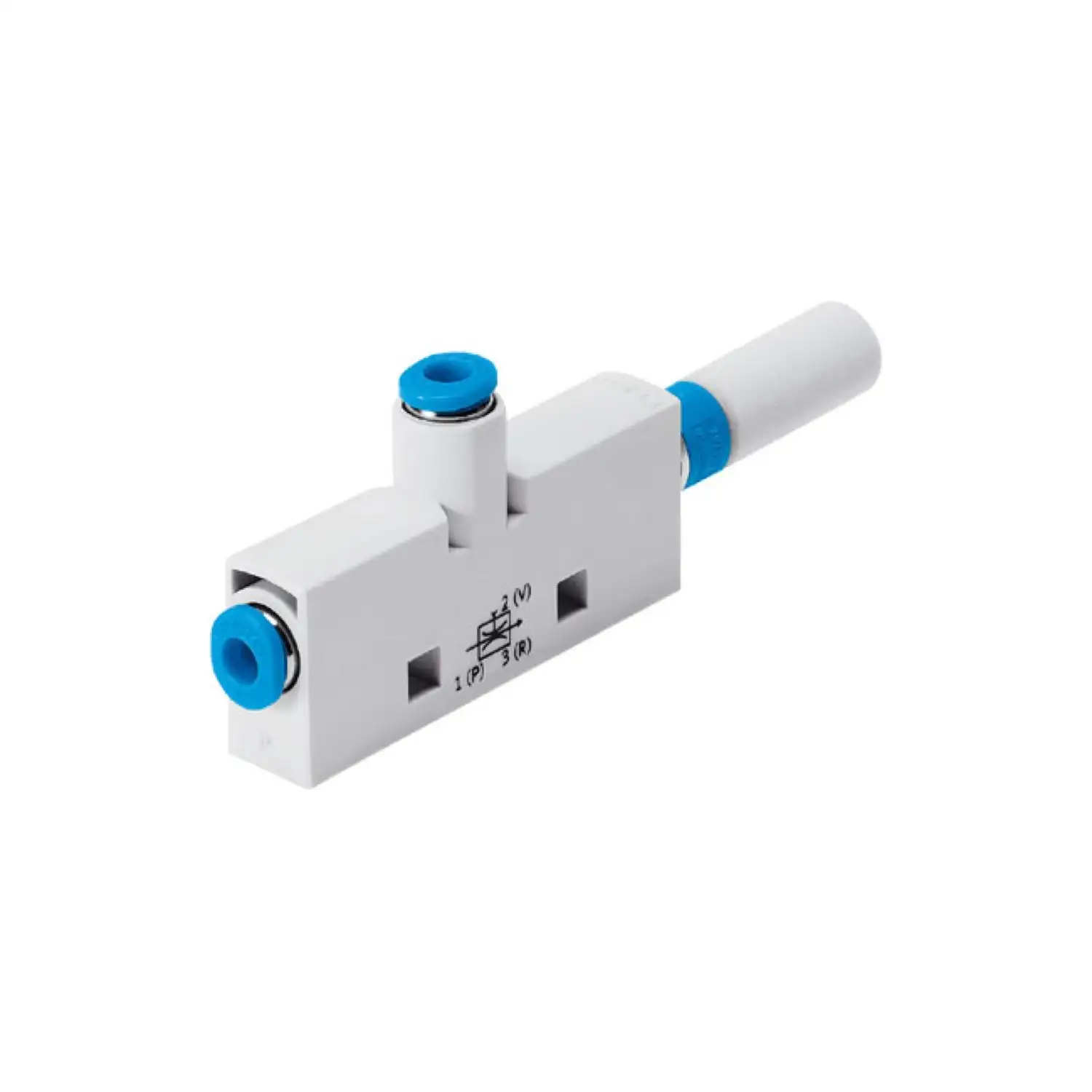

FESTO VN-07-H-T3-PQ2-VQ2-RO1

Description

Nominal width of Laval nozzle 0.7 mm Width dimension 14 mm Muffler construction type Open Mounting position Any Ejector characteristics High vacuum Standard Integrated function Pneumatic muffler open Structural design T-shape Symbol 00991489 Operating pressure for max. suction rate 2.1 bar Operating pressure 1 bar … 8 bar Operating pressure for max. vacuum 4.7 bar Max. vacuum 88 % Nominal operating pressure 6 bar Max. suction rate with respect to atmosphere 16 l/min Air supply time at nominal operating pressure 1.9 s Operating medium Compressed air as per iso 8573-1:2010 [7:4:4] Information on operating and pilot media Operation with oil lubrication not possible Corrosion resistance class (CRC) 1 – Low corrosion stress Temperature of medium 0 °c … 60 °c Noise level at nominal operating pressure 64 dB(A) Ambient temperature 0 °c … 60 °c Max. tightening torque 0.5 Nm Product weight 24 g Type of mounting With through-hole With accessories Pneumatic connection 1 QS-6 Pneumatic connection 3 Pneumatic muffler open Vacuum connection QS-6 Material of connecting thread Brass, nickel-plated Note on materials Free of copper and PTFE rohs-compliant Seals material NBR Female nozzle material POM Housing material POM-reinforced Muffler material PE Material of jet nozzle Wrought aluminum alloy
Material of pneumatic fitting Brass
Nickel-plated
