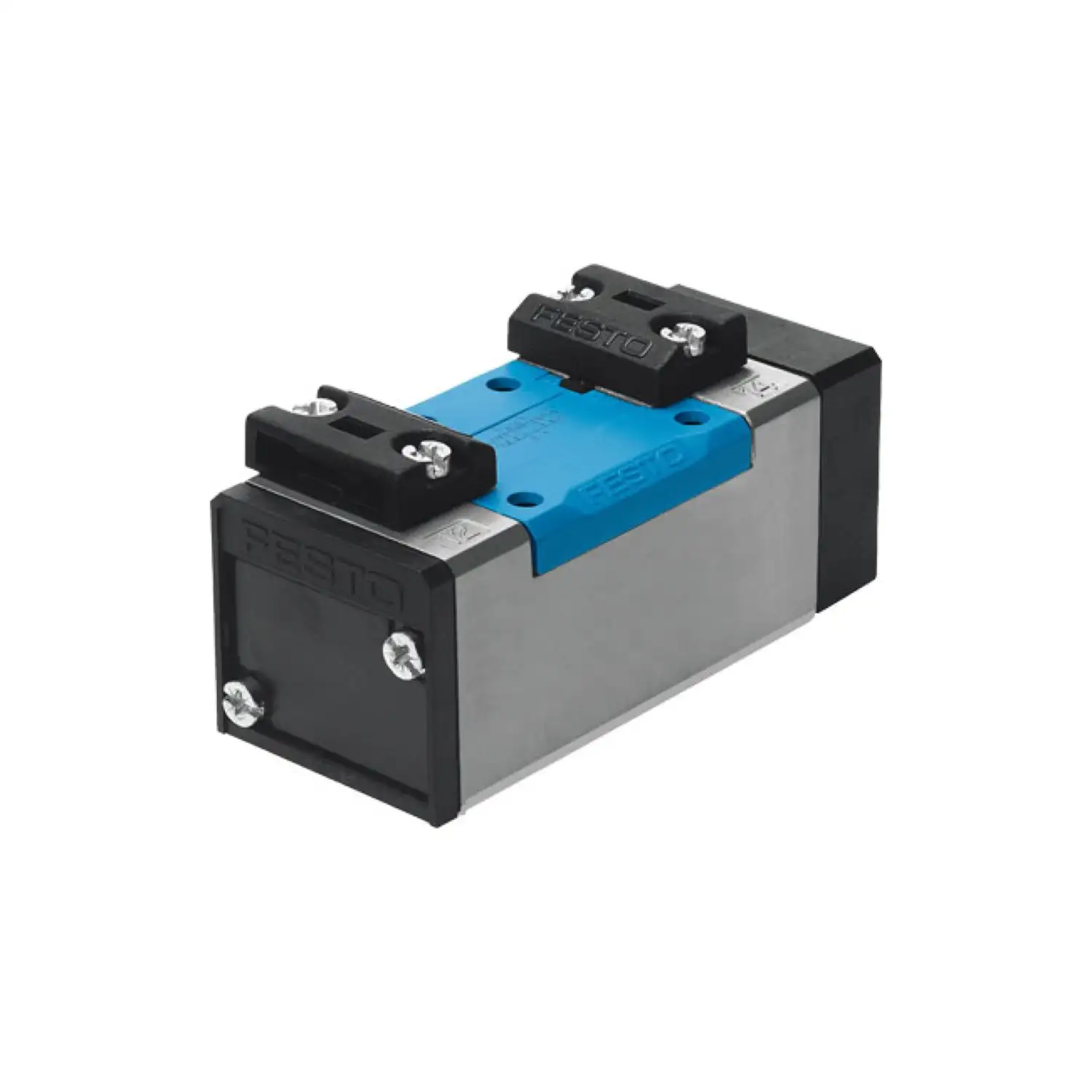

FESTO VL-5/2-D-1-FR-C

Description

Valve function 5/2, monostable Actuation type Pneumatic Width 42 mm Standard nominal flow rate 1200 l/min Pneumatic working port Sub-base size 1 to iso 5599-1 G1/4 Operating pressure -0.9 bar … 16 bar Structural design Piston gate valve Reset method Mechanical spring Nominal width 8 mm Width dimension 43 mm Exhaust air function With flow control option Sealing principle Soft Mounting position Any Conforms to standard iso 5599-1 Manual override None iso code 104 Type of control Direct Flow direction Reversible Symbol 00991029 Lap Overlap Pilot pressure 3 bar … 16 bar Switching time off 23 ms On switching time 6 ms Operating medium Compressed air as per iso 8573-1:2010 [7:4:4] Information on operating and pilot media Operation with oil lubrication possible (required for further use) Vibration resistance Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6 Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 Temperature of medium -10 °c … 60 °c Noise level 85 dB(A) Pilot medium Compressed air as per iso 8573-1:2010 [7:4:4] Ambient temperature -10 °c … 60 °c Product weight 290 g Type of mounting On sub-base With through-hole Pilot air port 12 Sub-base, size 1 as per iso 5599-1
Pilot air port 14 Sub-base, size 1 as per iso 5599-1
Pneumatic connection 1 Sub-base, size 1 as per iso 5599-1
Pneumatic connection 2 Sub-base, size 1 as per iso 5599-1
Pneumatic connection 3 Sub-base, size 1 as per iso 5599-1
Pneumatic connection 4 Sub-base, size 1 as per iso 5599-1
Pneumatic connection 5 Sub-base, size 1 as per iso 5599-1
Note on materials rohs-compliant
Seals material HNBR
NBR
Housing material Die-cast aluminum
