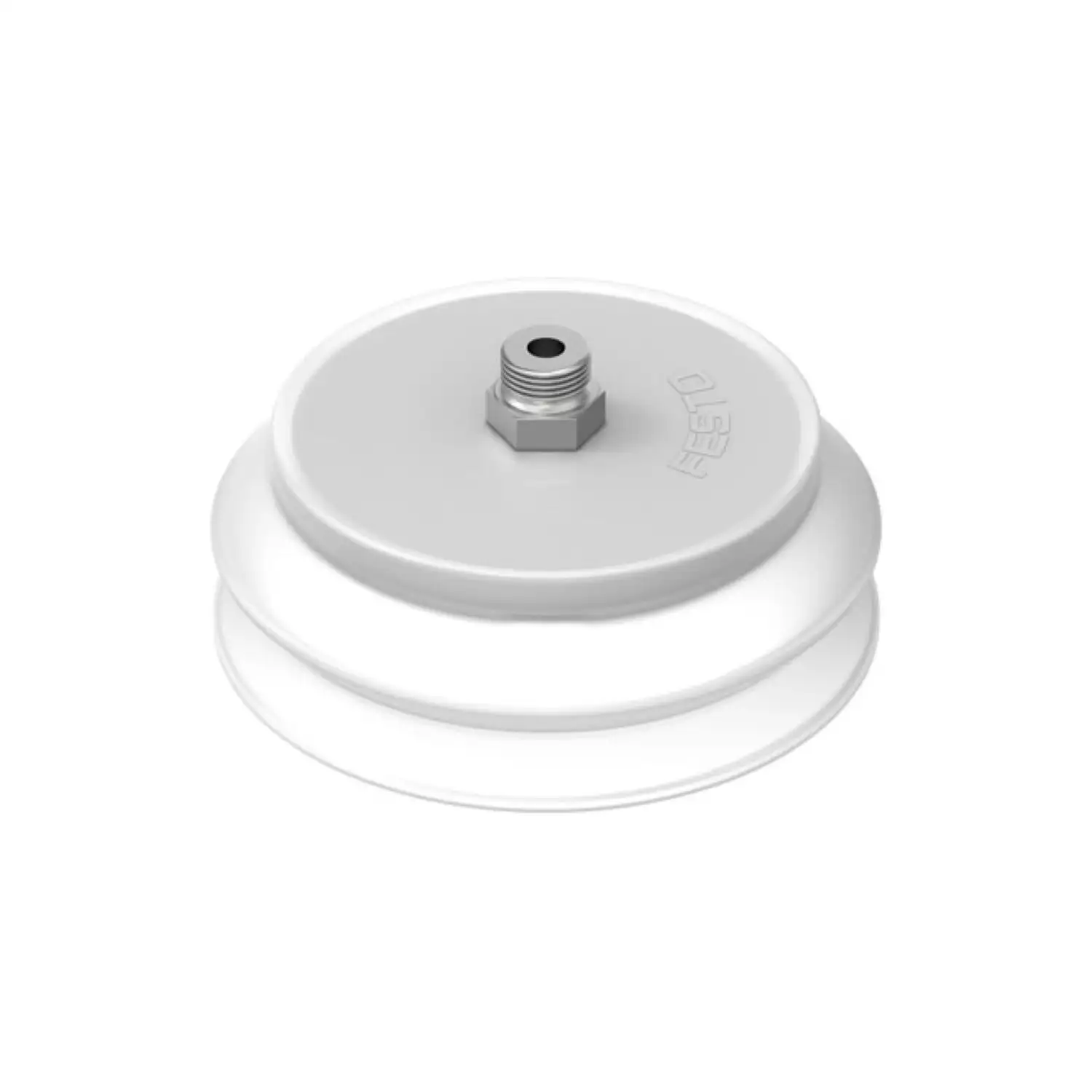

FESTO VASB-125-3/8-SI-B

Description

Suction cup height compensation 25 mm Nominal width 7 mm Suction cup diameter 125 mm Suction cup volume 307 cm³ Connection position Top Mounting position Any Symbol 00991485 Suction cup shape Round bellows, 1.5 convolutions Operating pressure -0.95 bar … 0 bar Nominal operating pressure -0.7 bar Operating medium Atmospheric air based on iso 8573-1:2010 [7:-:-] Corrosion resistance class (CRC) 2 – Moderate corrosion stress For use in the food industry See supplementary material information Ambient temperature -40 °c … 200 °c Holding force at nominal operating pressure 610 N Product weight 247 g Type of mounting Via vacuum connection Vacuum connection G3/8 Color Transparent Shore hardness 60 +/- 5 Material of screwed trunnion Wrought aluminum alloy Note on materials Contains paint-wetting impairment substances rohs-compliant Suction cup material VMQ (silicone)
