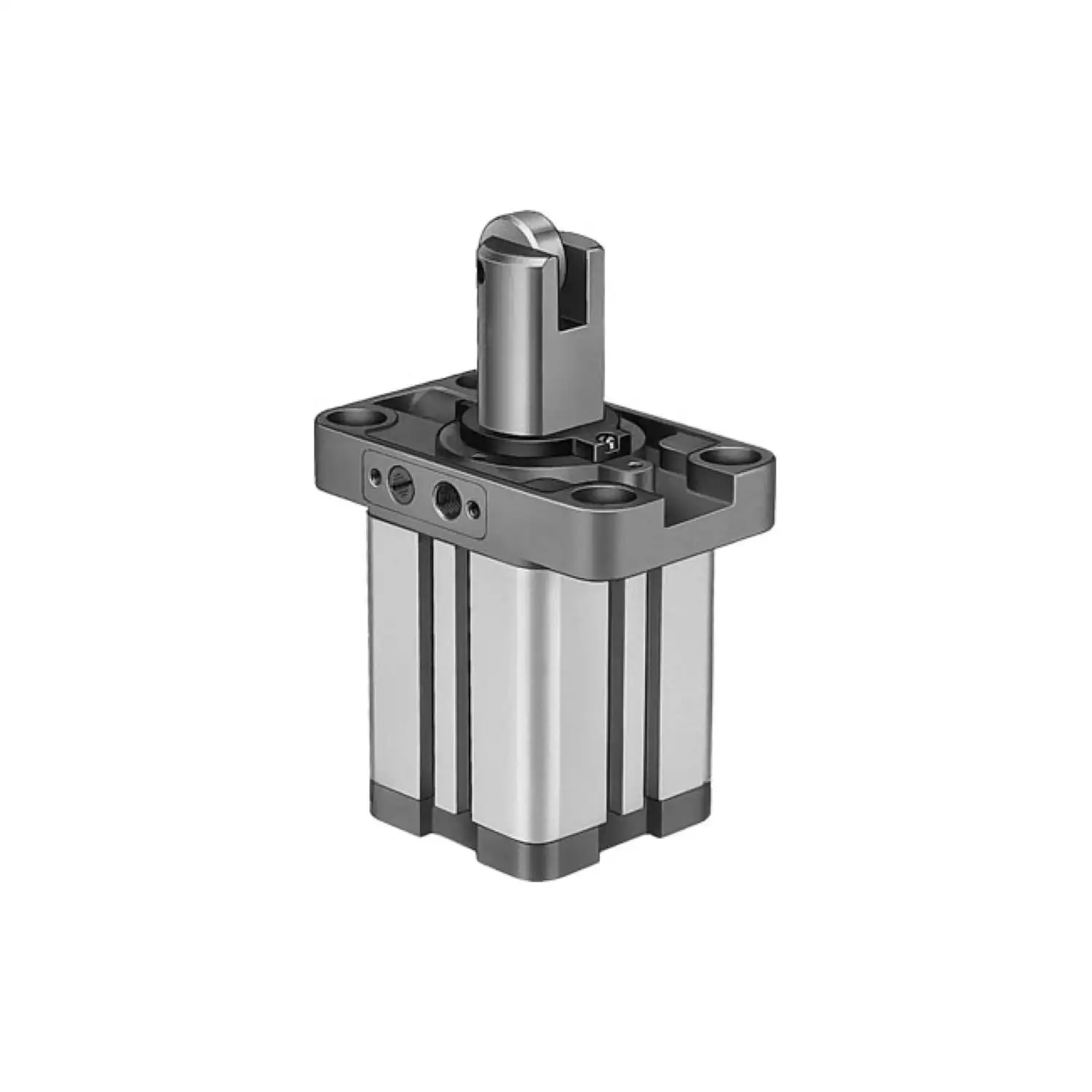

FESTO STAF-80-30-P-A-R

Description

Stroke 30 mm Piston diameter 80 mm Cushioning Elastic cushioning rings/pads at both ends Mounting position Any Mode of operation Single-acting Pulling Structural design Piston Piston rod with roller Position sensing For proximity sensor Symbol 00991204 Variants Piston rod at one end Protection against torsion/guide Flattened piston rod Operating pressure 1 bar … 10 bar Operating medium Compressed air as per iso 8573-1:2010 [7:-:-] Corrosion resistance class (CRC) 2 – Moderate corrosion stress Ambient temperature 0 °c … 60 °c Permissible impact force on the advanced piston rod 14600 N Permissible lateral force during switching operation 4500 N Type of mounting With through-hole Pneumatic connection G1/8 Note on materials Free of copper and PTFE Cover material Aluminum Seals material NBR Housing material Aluminum Piston rod material High-alloy stainless steel Roller material Steel
