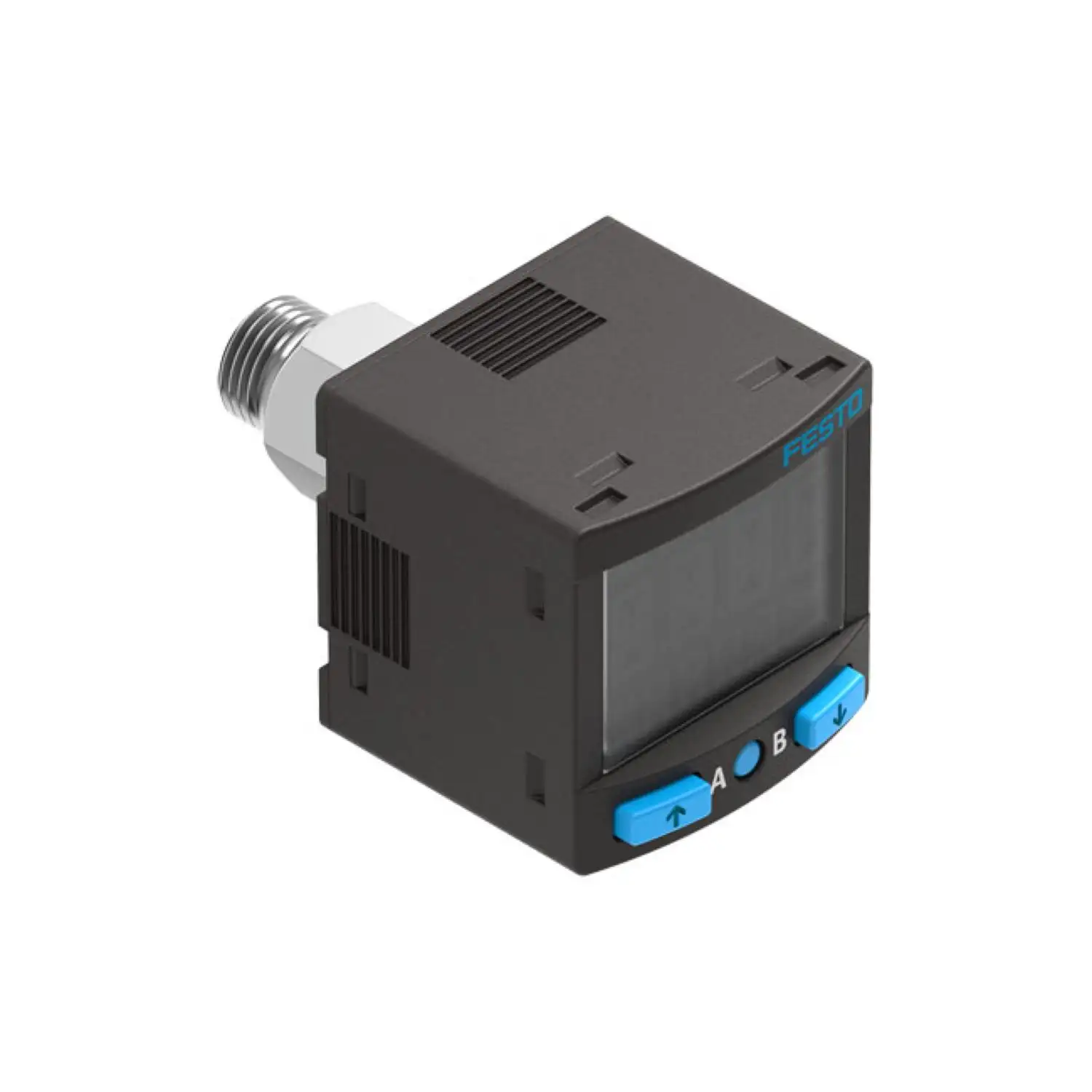

FESTO SPAN-B-B2R-G18FPM-PN-L1+2.5S

Description

Symbol 00997331 Certification RCM compliance mark CE marking (see declaration of conformity) As per EU EMC directive As per EU rohs directive KC characters KC EMC Note on materials rohs-compliant Measured variable Relative pressure Method of measurement Piezoresistive pressure sensor Pressure measuring range initial value -0.1 MPa Pressure measuring range initial value -1 bar Pressure measuring range initial value -14.5 psi Pressure measuring range end value 0.1 MPa Pressure measuring range end value 1 bar Pressure measuring range end value 14.5 psi Max. overload pressure 5 bar Overload pressure 0.5 MPa Overload pressure 5 bar Overload pressure 72.5 psi Operating medium Compressed air as per iso 8573-1:2010 [7:4:4] Inert gas Information on operating and pilot media Operation with oil lubrication possible Temperature of medium 0 °c … 50 °c Ambient temperature 0 °c … 50 °c Accuracy in ± % FS 1.5 %FS Repetition accuracy in ± %FS 0.3 %FS Temperature co-efficient in ± %FS/K 0.1 %FS/K Switching output PNP/NPN switchable Switching function Window comparator Threshold value comparator Switching element function N/C contact/N/O contact switchable Max. output current 80 mA Short-circuit protection yes DC operating voltage range 10.8 V … 30 V Reverse polarity protection for all electrical connections Electrical connection 1, connection type Plug Electrical connection 1, connection technology Connection diagram L1J Electrical connection 1, number of pins/wires 4
Electrical connection for input 1, connection pattern 00995428
Type of mounting Front panel mounting
With thread
With wall/surface bracket
Mounting position Any
Pneumatic connection Internal thread G1/8
Product weight 21 g
Housing material PA-reinforced
Materials in contact with the media FPM
PA-reinforced
Display type Illuminated LCD
Displayable unit(s) MPa
bar
inHg
kPa
mmHg
mmHg
psi
Setting options Teach-in
Via display and pushbuttons
Protection against tampering PIN code
Setting range threshold value 0 % … 100 %
Setting range hysteresis 0 % … 90 %
Degree of protection IP40
Corrosion resistance class (CRC) 2 – Moderate corrosion stress
LABS conformity VDMA24364-B1/B2-L
