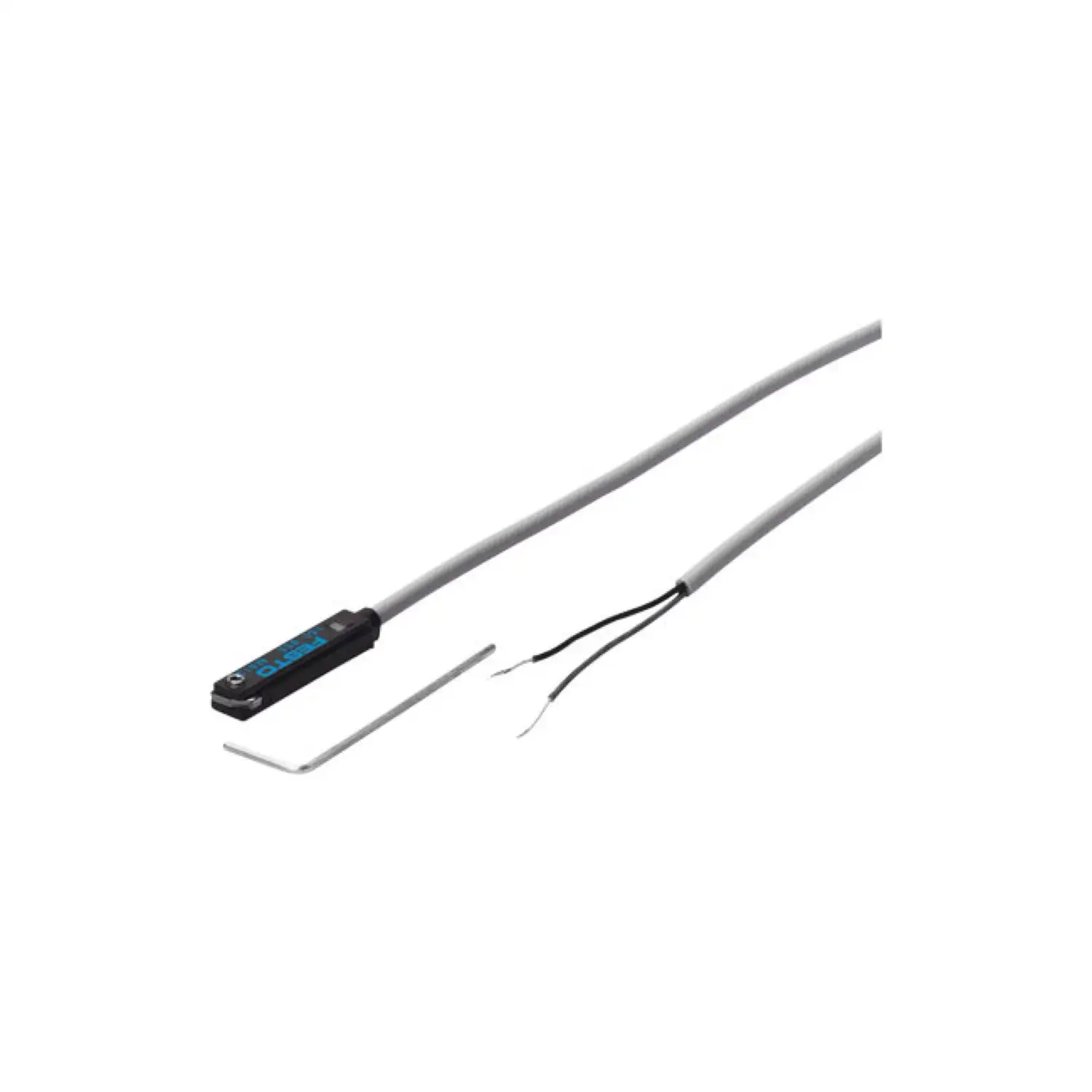

FESTO SME-8-ZS-KL-LED-24

Description

Design for T-slot Conforms to standard EN 60947-5-2 Symbol 00991144 Certification RCM compliance mark CE marking (see declaration of conformity) As per EU EMC directive Note on materials Free of copper and PTFE rohs-compliant Measuring principle Magnetic reed Ambient temperature -40 °c … 60 °c Switching output Contact-based, bipolar Without LED function Switching element function N/O contact Reproducibility of switching value +/- 0.1 mm On time ≤0.5 ms Switch-off time 0.03 ms Max. switching frequency 800 Hz Max. output current 80 mA Max. switching capacity DC 2.16 W Voltage drop ≤3.5 V Short-circuit protection no Overload protection Not available DC operating voltage range 12 V … 27 V Reverse polarity protection no Electrical connection 2-wire Cable Connection outlet orientation Longitudinal Cable length 2.5 m Material of cable sheath TPE-U(PUR) Type of mounting Clamped in T slot Can be inserted in slot lengthwise Tightening torque 0.2 Nm Product weight 27.9 g Housing material Epoxy resin PC PET High-alloy stainless steel Switching status indication LED yellow Ambient temperature with flexible cable installation -5 °c … 60 °c Degree of protection IP67
Insulation voltage 50 V
Surge resistance 0.8 kV
Contamination level 3
