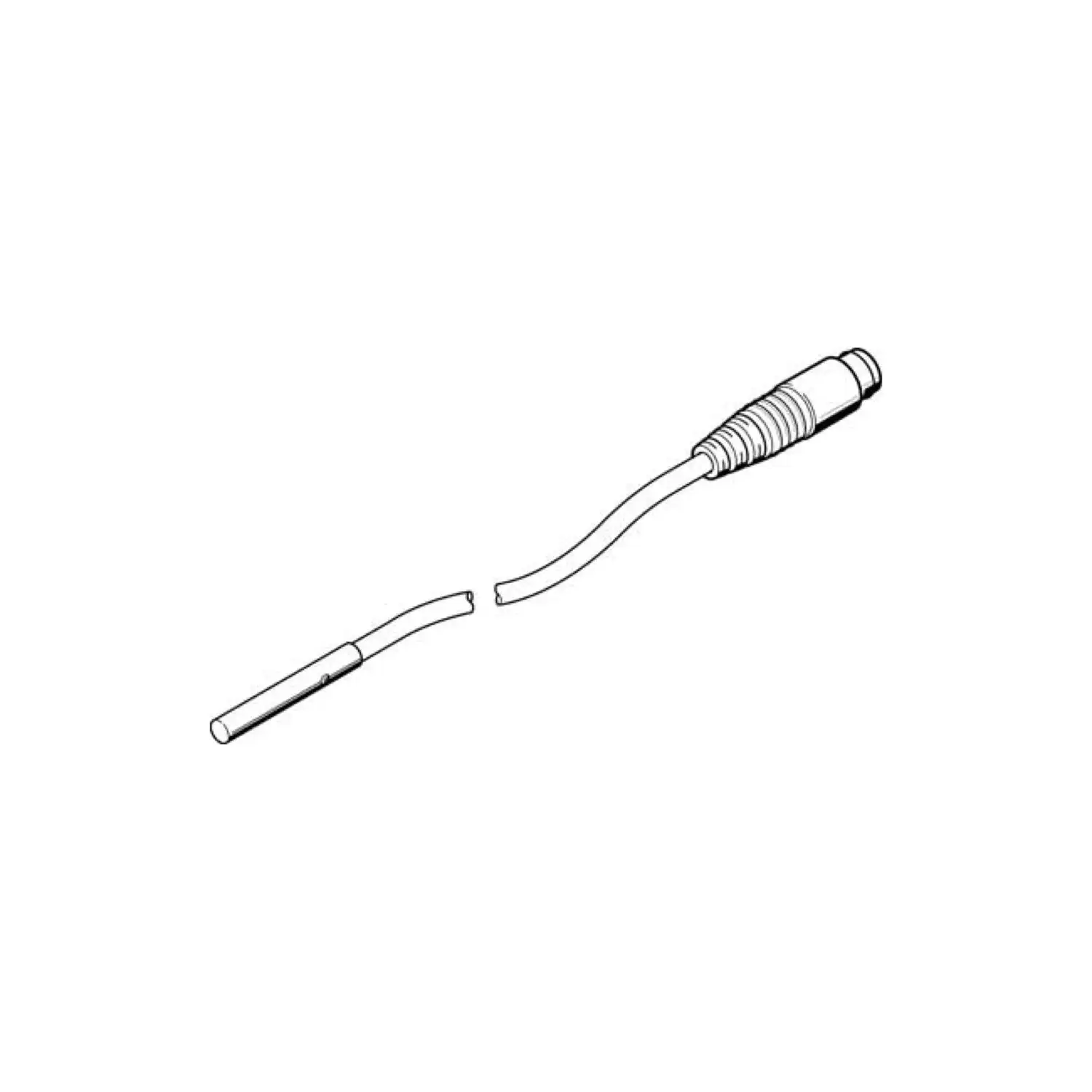

FESTO SIEH-3B-PS-S-L

Description

Design Round Conforms to standard EN 60947-5-2 Symbol 00991701 Certification RCM compliance mark c UL us – Listed (OL) CE marking (see declaration of conformity) As per EU EMC directive Note on materials Free of copper and PTFE Measuring principle Inductive Rated operating distance 1 mm Assured operating distance 0.81 mm Reduction factors Aluminum = 0.5 Stainless steel St 18/8 = 0.8 Copper = 0.45 Brass = 0.6 Steel St 37 = 1.0 Ambient temperature -25 °c … 70 °c Repetition accuracy 0.02 mm Switching output PNP Switching element function N/O contact Hysteresis ≤0.12 mm On time 0.02 ms Max. switching frequency DC 3000 Hz Max. output current 100 mA Voltage drop ≤2 V Inductive protective circuit Installed Output current < 100 mA and switching frequency < 10 Hz Residual current ≤0.1 mA Short-circuit protection Pulsed DC operating voltage range 10 V ... 30 V Residual ripple 20 % Idle current ≤10 mA Reverse polarity protection for all electrical connections Electrical connection 3-pin Cable with plug M8x1 Cable length 0.15 m Material of cable sheath TPE-U(PUR) Insulating sheath material PVC Size 3 mm Type of mounting Clamped Mounting type Flush Product weight 4 g Housing material High-alloy stainless steel Switching status indication LED yellow Ambient temperature with flexible cable installation -5 °c ... 70 °c Degree of protection IP67 Corrosion resistance class (CRC) 1 - Low corrosion stress Selection of additional sensor information with increased sensing distance Electrical output PNP Selection of sensor version Standard
