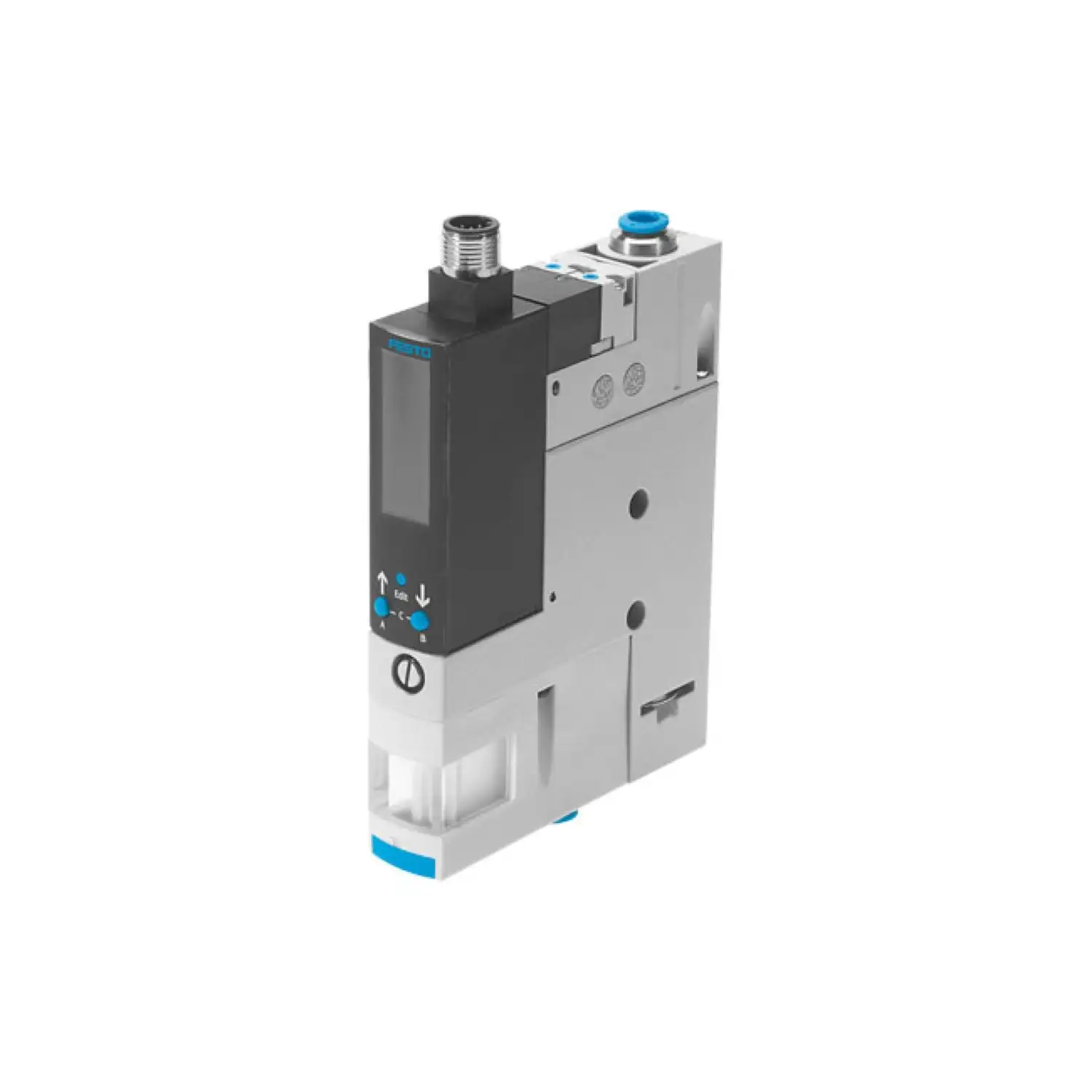

FESTO OVEM-07-H-B-QO-ON-N-2P

Description

Nominal width of Laval nozzle 0.7 mm Width dimension 20 mm Muffler construction type Open Mounting position Any Ejector characteristics High vacuum Standard Grade of filtration 40 µm Manual override Non-detenting Additionally via operating buttons Integrated function Shut off valve, electric Compressed air filter Pneumatic muffler open Vacuum switch Structural design Modular Short-circuit protection yes Measured variable Relative pressure Measuring principle Piezoresistive Switching element function N/C contact N/O contact Switching function Window comparator Threshold value comparator Symbol 00992100 Valve function Open Reverse polarity protection for all electrical connections Switching input to standard IEC 61131-2 Display type 4-character alphanumeric Back-lit LCD Display range -0.999 bar … 0 bar Displayable unit(s) bar Setting range hysteresis -0.9 bar … 0 bar Setting options Via display and pushbuttons Switching position indication LCD Switching status indication Optical Setting range threshold value -0.999 bar … 0 bar Operating pressure 2 bar … 8 bar Operating pressure for max. vacuum 4.1 bar Max. vacuum 93 % Nominal operating pressure 6 bar Max. suction rate with respect to atmosphere 16 l/min
Air supply time at nominal operating pressure 1.9 s
DC operating voltage range 20.4 V … 27.6 V
Duty cycle 100%
Inductive protective circuit Adapted to MZ, MY and ME coils
Insulation voltage 50 V
