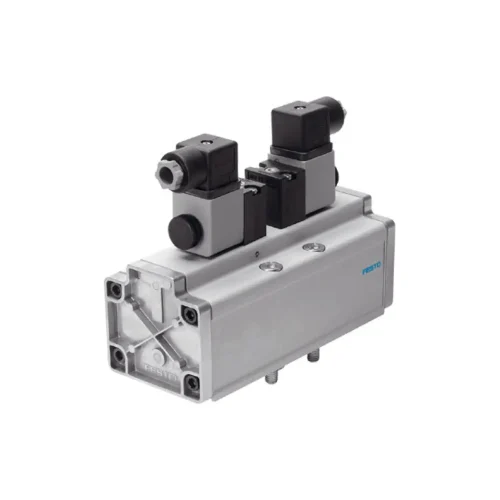

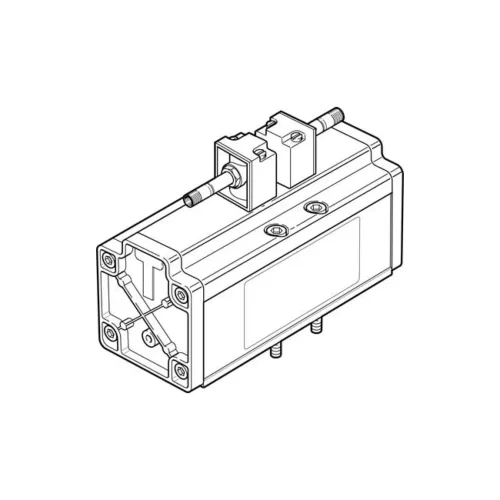

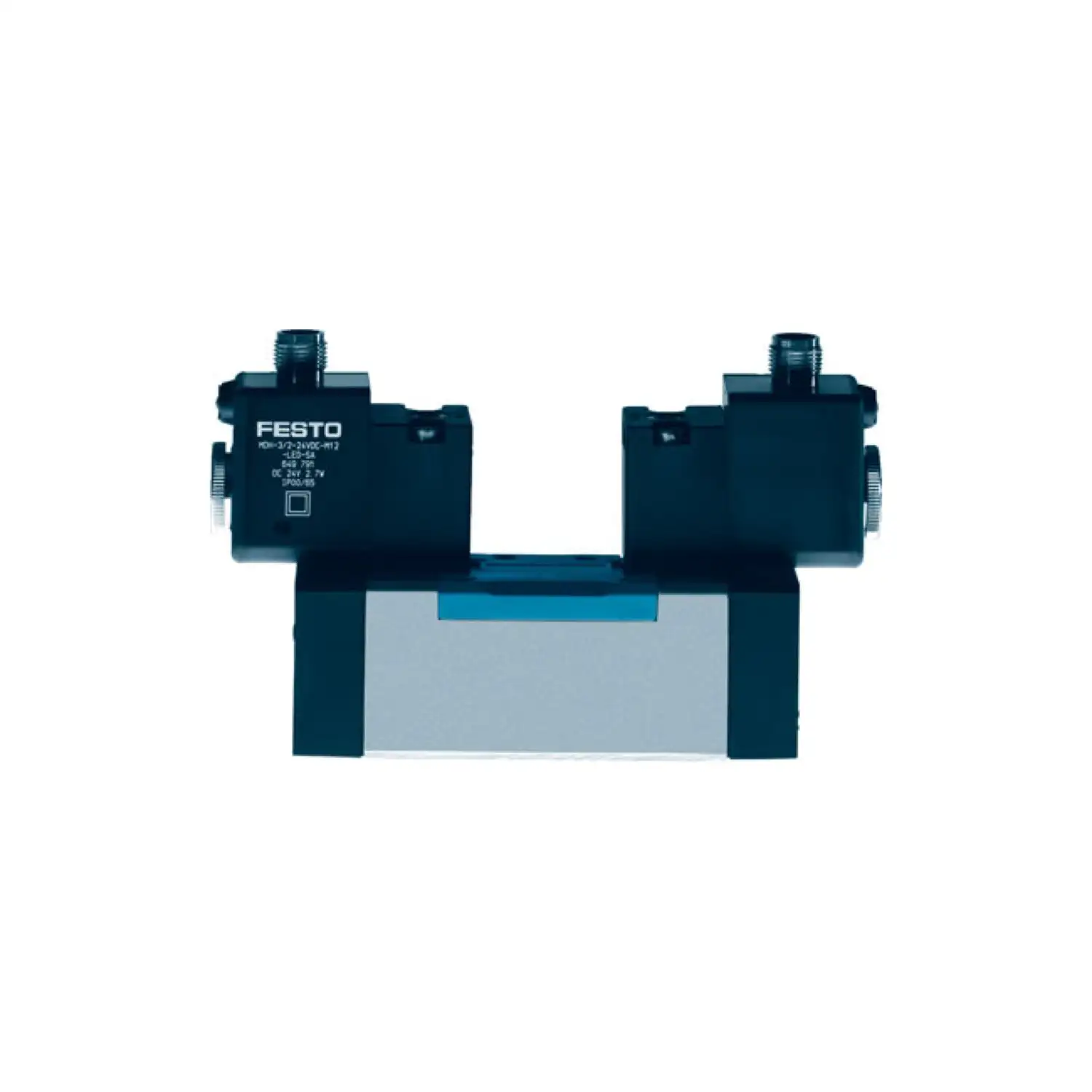

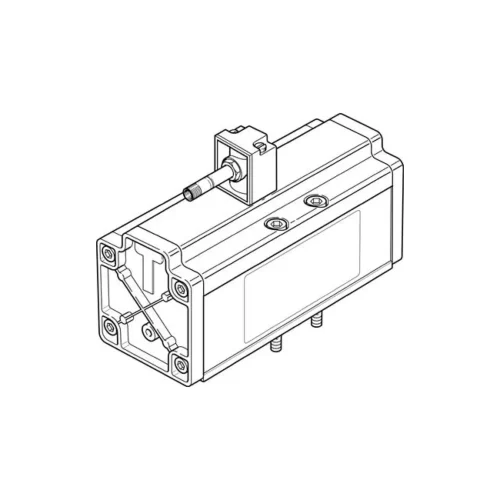

FESTO JMDH-5/2-D-2-M12D-C

Description

Valve function 5/2, bistable Actuation type Electrical Width 54 mm Standard nominal flow rate 2300 l/min Pneumatic working port Sub-base size 2 to iso 5599-1 G3/8 Operating voltage 24V DC Operating pressure 2 bar … 10 bar Structural design Piston gate valve Degree of protection IP65 Nominal width 11.5 mm Width dimension 56 mm Exhaust air function With flow control option Sealing principle Soft Mounting position Any Conforms to standard iso 5599-1 Manual override Non-detenting iso code 255 Type of control Pilot-controlled Pilot air supply port Internal Flow direction Non-reversible Symbol 00991005 Lap Overlap Changeover time 20 ms Duty cycle 100% Max. positive test pulse with 0 signal 3800 µs Max. negative test pulse on 1 signal 4900 µs Coil characteristics 24 V DC: 2.7 W Permissible voltage fluctuations +/- 10 % Operating medium Compressed air as per iso 8573-1:2010 [7:4:4] Information on operating and pilot media Operation with oil lubrication possible (required for further use) Vibration resistance Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6 Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 Temperature of medium -10 °c … 50 °c Noise level 85 dB(A) Ambient temperature -10 °c … 50 °c
Product weight 940 g
Electrical connection M12x1
Type of mounting On sub-base
With through-hole and screw
Pilot exhaust air port 82 M5
Pilot exhaust air port 84 M5
Pneumatic connection 1 Sub-base, size 4 as per iso 5599-1
Pneumatic connection 2 Sub-base, size 2 as per iso 5599-1
Pneumatic connection 3 Sub-base, size 2 as per iso 5599-1
Pneumatic connection 4 Sub-base, size 2 as per iso 5599-1
Pneumatic connection 5 Sub-base, size 2 as per iso 5599-1
Note on materials rohs-compliant
Seals material HNBR
NBR
Housing material Die-cast aluminum
