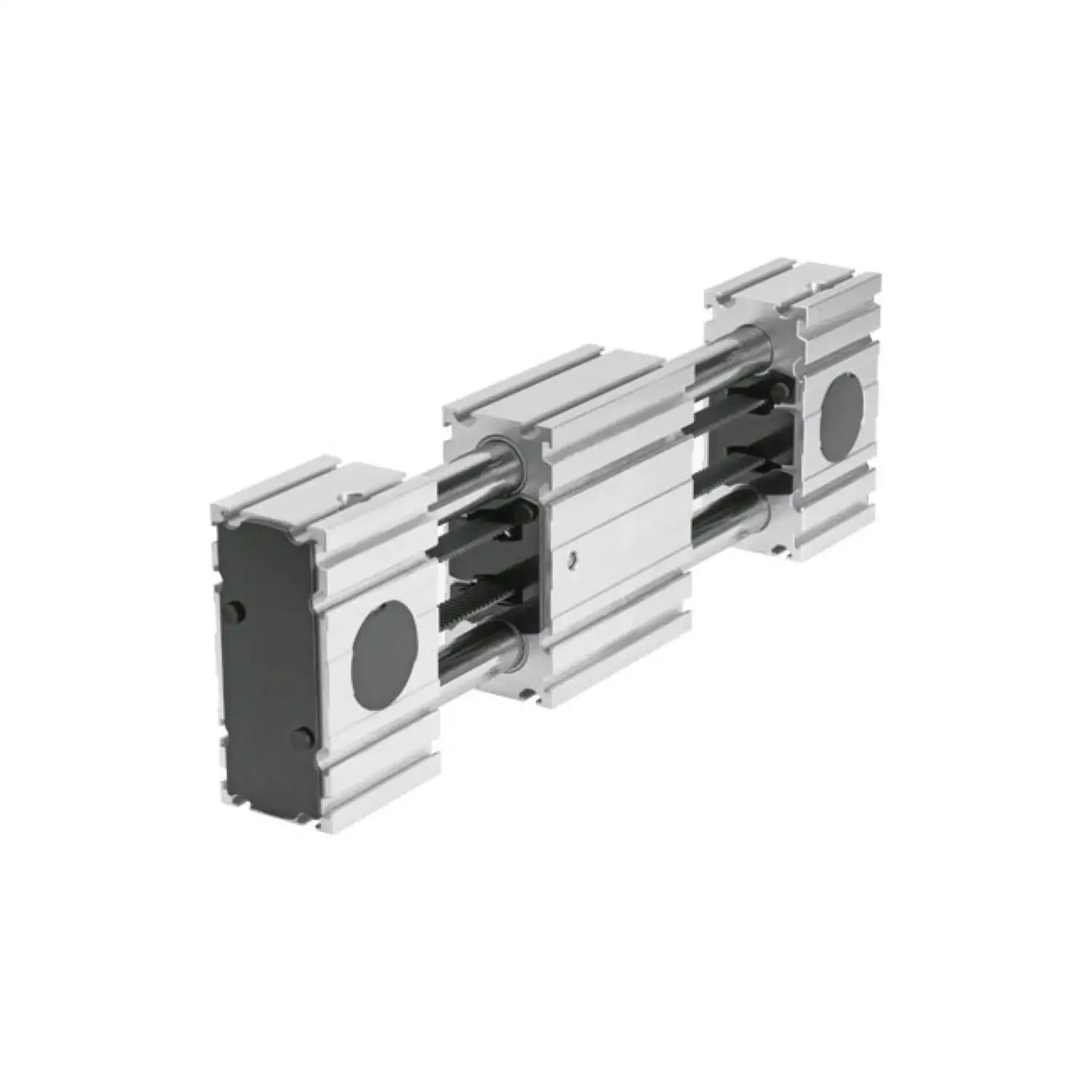

FESTO ELGR-TB-55-1000-0H

Description

Drive pinion effective diameter 28.65 mm Working stroke 1500 mm Size 55 Toothed belt elongation 0.21 % Toothed belt pitch 3 mm Mounting position Any Guide Recirculating ball bearing guide Structural design Electromechanical linear axis with toothed belt Motor type Stepper motor Servo motor Symbol 00991212 Max. acceleration 50 m/s² Max. speed 0.35 m/s … 3 m/s Repetition accuracy ±0.1 mm Duty cycle 100% Degree of protection IP20 Ambient temperature -10 °c … 50 °c 2nd moment of area Iy 38300 mm⁴ 2nd moment of area Iz 41180 mm⁴ Max. driving torque 5 Nm Max. force Fy 300 N Max. force Fz 300 N Max. no-load resistance to shifting 27.9 N Max. feed force Fx 350 N No-load driving torque 0.4 Nm Mass moment of inertia JH per meter of stroke 0.19 kgcm² Mass moment of inertia JL per kg of payload 2.05 kgcm² Feed constant 90 mm/U Reference value, running performance 5000 km Additional weight per 10 mm stroke 78 g Product weight 17140 g Additional moving mass per 10 mm stroke 0.92 g Profile material Wrought aluminum alloy Anodized Note on materials Contains paint-wetting impairment substances rohs-compliant Drive cover material Wrought aluminum alloy
Anodized
Belt pulley material High-alloy stainless steel
Slide material Wrought aluminum alloy
Anodized
Toothed belt clamping component material Beryllium bronze
Toothed belt material Polychloroprene with glass cord and nylon coating
