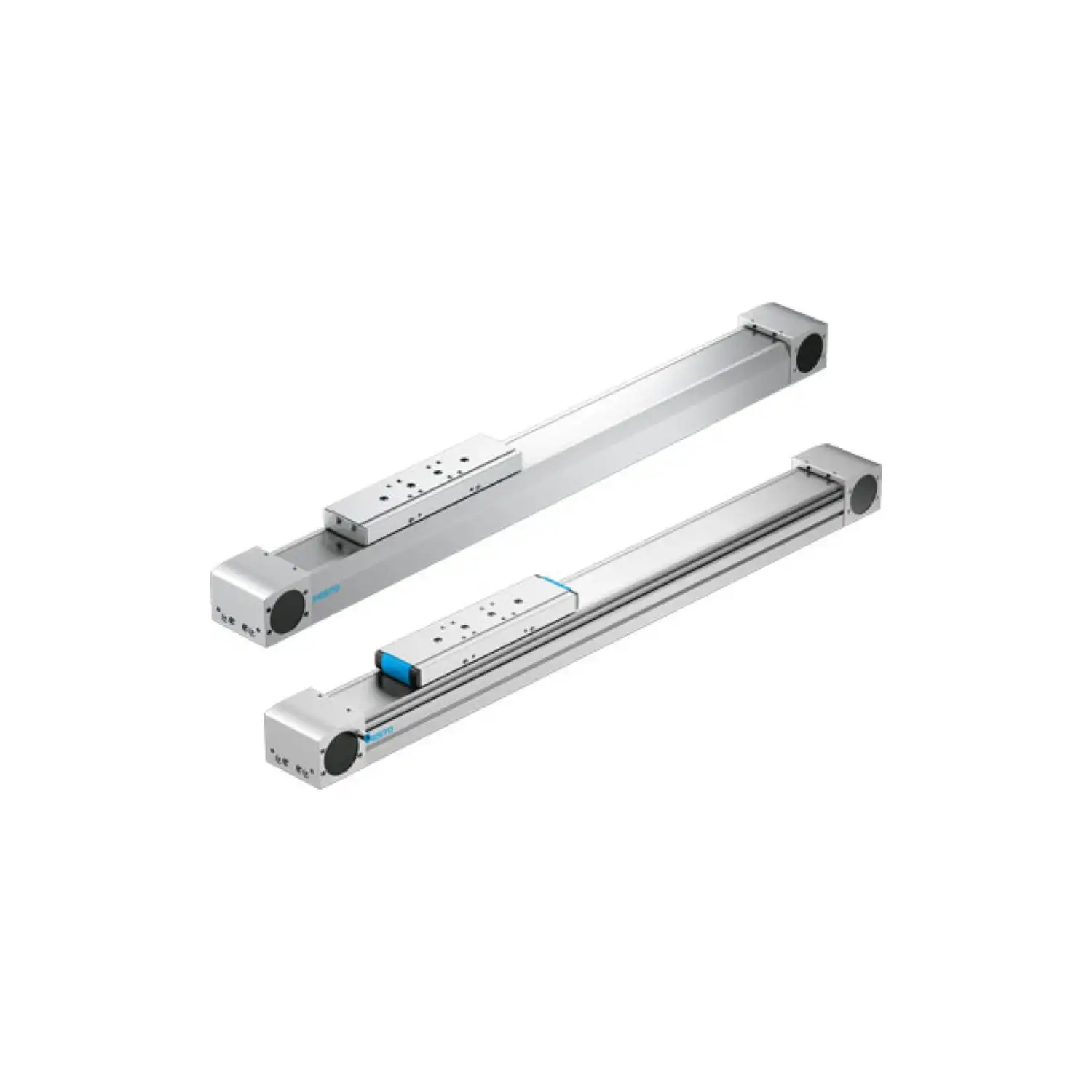

FESTO ELGA-TB-RF-120-

Description

Drive pinion effective diameter 52.52 mm Working stroke 50 mm … 7400 mm Size 120 Toothed belt pitch 5 mm Mounting position Any Guide Roller guide Structural design Electromechanical linear axis with toothed belt Motor type Servo motor Max. acceleration 50 m/s² Max. speed 10 m/s Repetition accuracy ±0.08 mm Duty cycle 100% For use in the food industry See supplementary material information Degree of protection IP40 Ambient temperature -10 °c … 60 °c Max. feed force Fx 1000 N Feed constant 165 mm/U Lubrication interval, distance dependent 10000 km Profile material Wrought aluminum alloy, anodized Note on materials Contains paint-wetting impairment substances rohs-compliant Cover strip material Stainless steel strip Drive cover material Wrought aluminum alloy, anodized Guide material Steel Belt pulley material High-alloy stainless steel Slide material Wrought aluminum alloy, anodized Toothed belt clamping component material Cast stainless steel Toothed belt material Polychloroprene with glass cord and nylon coating Polyurethane with steel cord and nylon cover Polyurethane with steel cord
