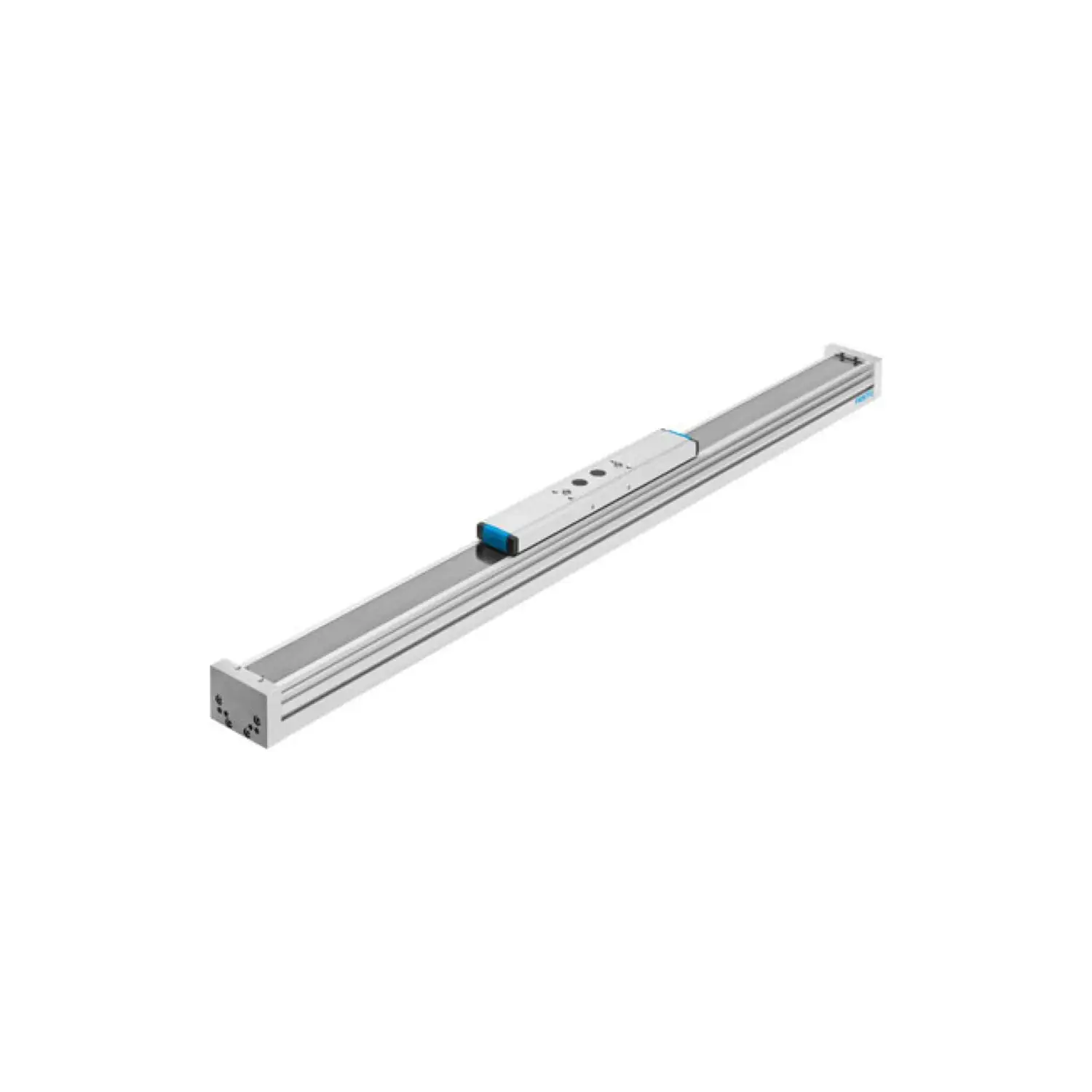

FESTO ELFA-RF-80- –

Description

Working stroke 50 mm … 7000 mm Size 80 Mounting position Any Guide Roller guide Structural design Guide Symbol 00992984 Max. acceleration 50 m/s² Max. speed 10 m/s Corrosion resistance class (CRC) 0 – No corrosion stress Degree of protection IP40 Ambient temperature -10 °c … 60 °c 2nd moment of area Iy 269840 mm⁴ 2nd moment of area Iz 1018510 mm⁴ Max. force Fy 800 N Max. force Fz 800 N Max. no-load resistance to shifting 40 N Max. torque Mx 30 Nm Lubrication interval, distance dependent 10000 km Additional weight per 10 mm stroke 47.13 g Basic weight with 0 mm stroke 4280 g Type of mounting With accessories Profile material Wrought aluminum alloy Anodized Note on materials Contains paint-wetting impairment substances rohs-compliant Cover strip material Stainless steel strip Guide material Steel Slide material Wrought aluminum alloy Anodized
