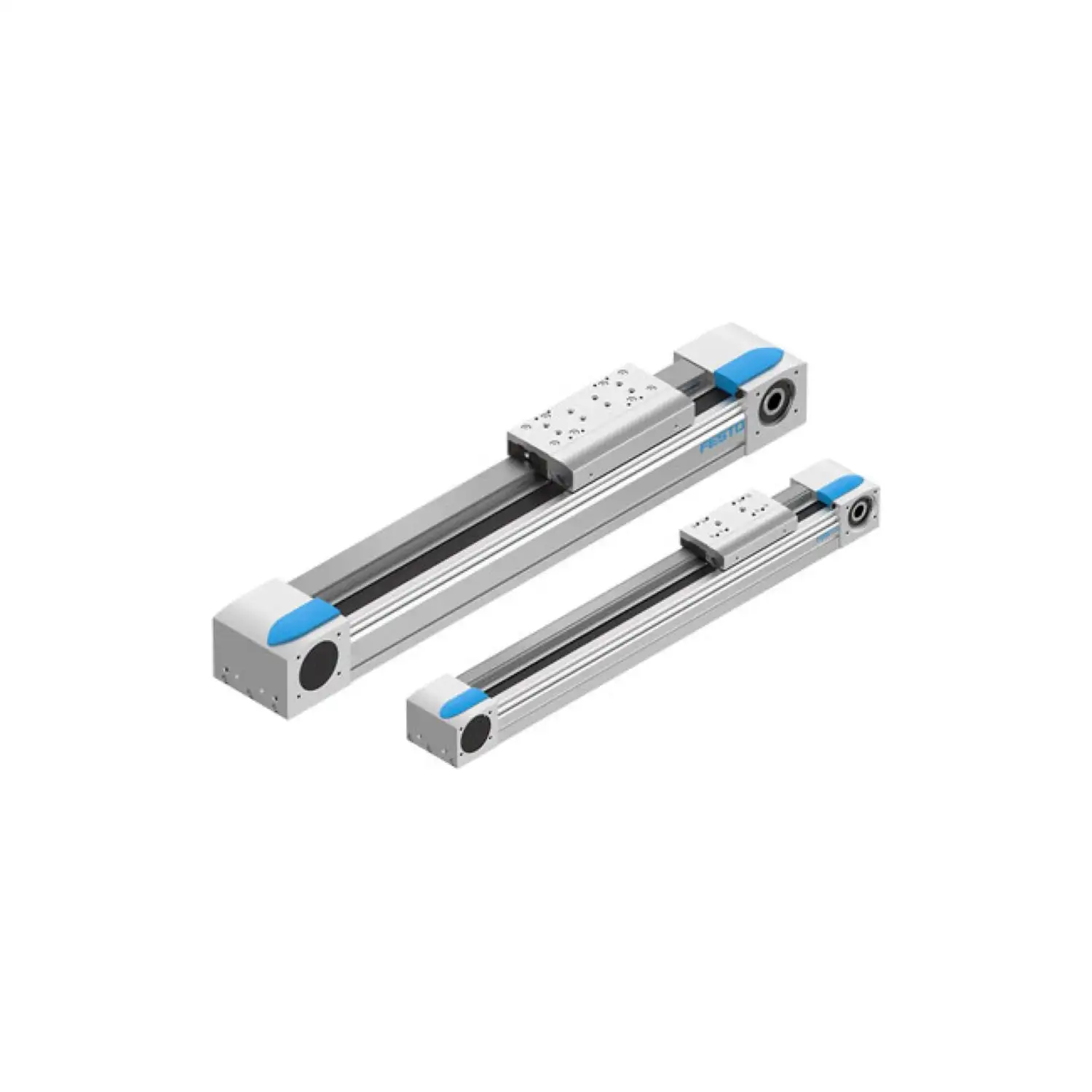

FESTO EGC-120- -TB-KF

Description

Drive pinion effective diameter 39.79 mm Working stroke 50 mm … 8500 mm Size 120 Toothed belt elongation 0.13 % Toothed belt pitch 5 mm Mounting position Any Guide Recirculating ball bearing guide Structural design Electromechanical linear axis with toothed belt Motor type Stepper motor Servo motor Max. acceleration 50 m/s² Max. speed 5 m/s Repetition accuracy ±0.08 mm Duty cycle 100% CE marking (see declaration of conformity) as per EU explosion protection directive (ATEX) UKCA marking (see declaration of conformity) acc. to UK EX instructions Explosion protection certification outside the EU EPL Db (GB) EPL Gb (GB) Explosion prevention and protection Zone 1 (ATEX) Zone 2 (ATEX) ATEX category gas II 2G Type of ignition protection for gas Ex h IIC T4 Gb Ex h IIC T4 Gb Explosive ambient temperature -10°c <= Ta <= +60°c Degree of protection IP40 Ambient temperature -10 °c ... 60 °c 2nd moment of area Ix 4620000 mm⁴ 2nd moment of area Iy 5650000 mm⁴ Max. force Fy 6890 N Max. force Fz 6890 N Max. no-load resistance to shifting 70 N Max. torque Mx 144 Nm Max. feed force Fx 800 N Torsion moment of inertia It 2680000 mm⁴ Mass moment of inertia JH per meter of stroke 0.93 kgcm² Mass moment of inertia JL per kg of payload 3.96 kgcm² Feed constant 125 mm/U Pneumatic port on clamping unit M5 Material of end caps Wrought aluminum alloy, anodized Profile material Wrought aluminum alloy, anodized Note on materials Contains paint-wetting impairment substances rohs-compliant Drive cover material Wrought aluminum alloy, anodized Slide carriage material Steel Guide rail material Steel Belt pulley material High-alloy stainless steel Slide material Wrought aluminum alloy, anodized Toothed belt clamping component material Cast stainless steel Toothed belt material Polychloroprene with glass cord and nylon coating Polyurethane with steel cord and nylon cover
