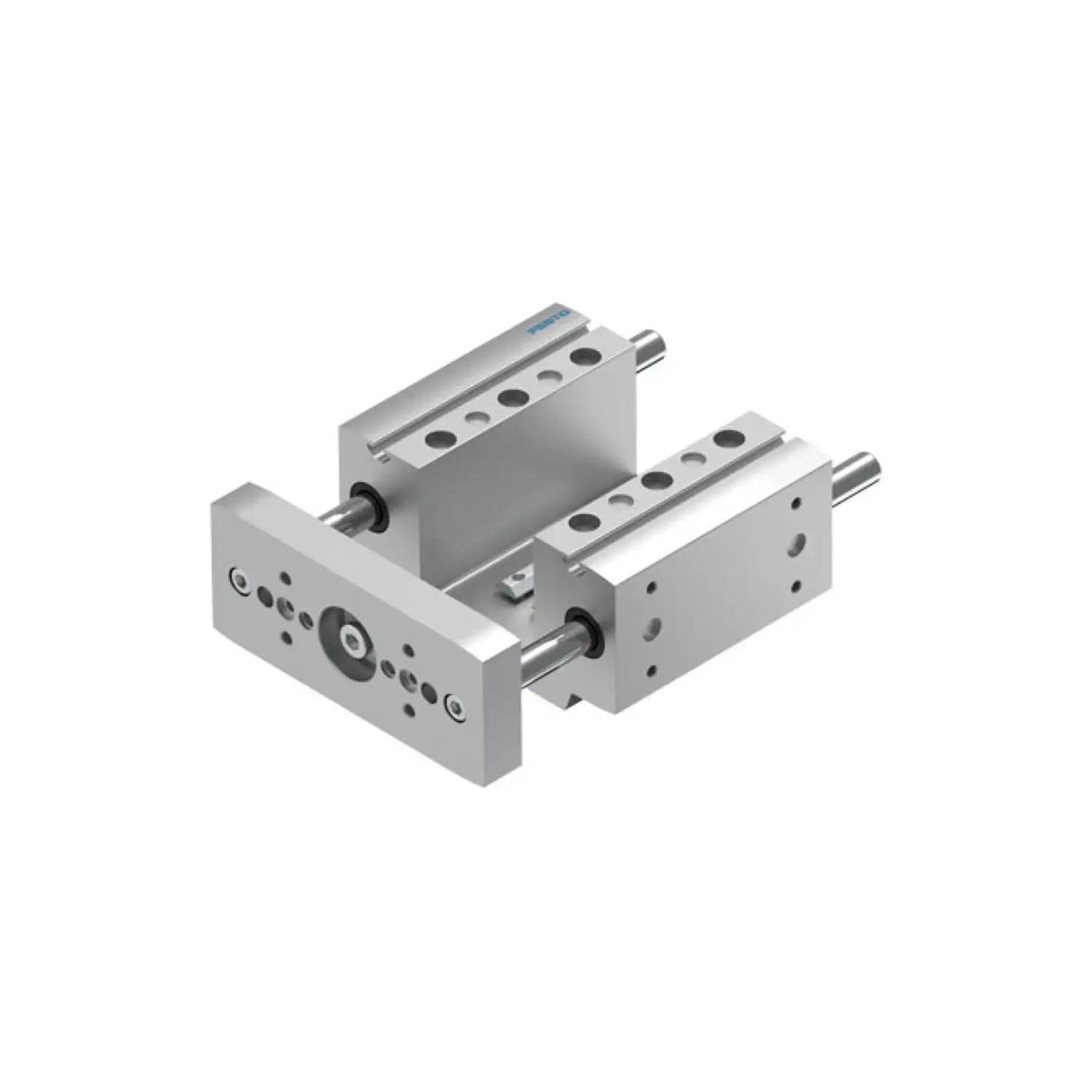

FESTO EAGF-P1-KF-16-150

Description

Size 16 Stroke 150 mm Reversing backlash 0 µm Mounting position Any Guide Recirculating ball bearing guide Structural design Guide Max. acceleration 25 m/s² Max. speed 1 m/s Corrosion resistance class (CRC) 1 – Low corrosion stress Degree of protection IP40 Ambient temperature 0 °c … 50 °c Max. force Fy 160 N Max. force Fy static 355 N Max. force Fz 160 N Max. force Fz static 355 N Max. torque Mx 6 Nm Max. static moment Mx 13 Nm Max. torque My 4 Nm Max. static moment My 9 Nm Max. torque Mz 4 Nm Max. static moment Mz 9 Nm Displacement force 3.2 N Moving mass at 0 mm stroke 160 g Additional weight per 10 mm stroke 8 g Basic weight with 0 mm stroke 600 g Additional moving mass per 10 mm stroke 8 g Center of gravity of moving mass with 0 mm stroke 29 mm Center of gravity of moving mass with 10 mm stroke 4.5 mm Type of mounting With internal thread Note on materials Free of copper and PTFE rohs-compliant Material of guide component Tempered steel Hard-chrome-plated Housing material Wrought aluminum alloy Anodized Material of yoke plate Wrought aluminum alloy Anodized
