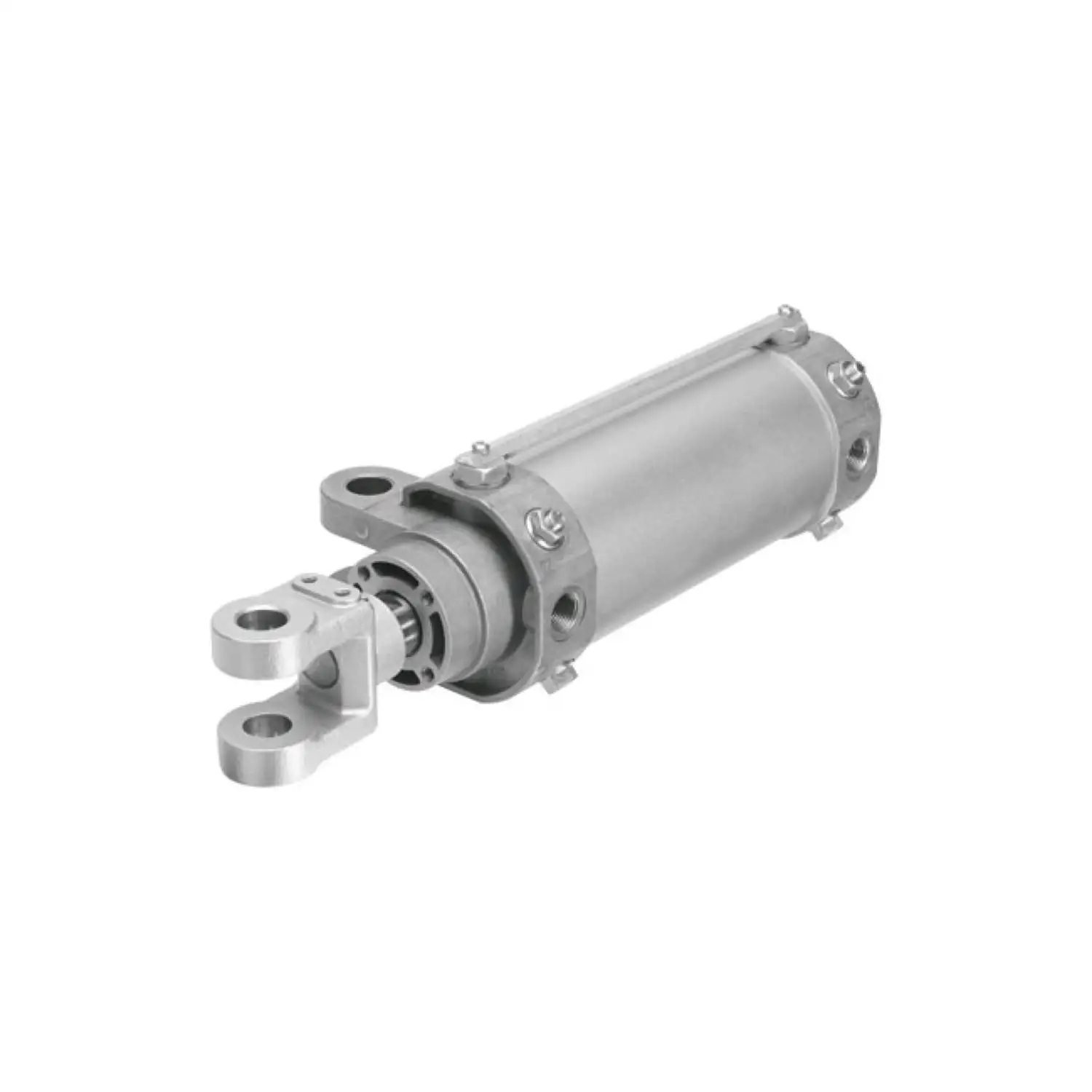

FESTO DW-80-100-Y-A

Description

Stroke 100 mm Piston diameter 80 mm Piston rod thread M20x1.5 Wide rod clevis/swivel mounting 28 mm Cushioning Pneumatic cushioning, adjustable at both ends Mounting position Any Structural design Piston Piston rod with rod clevis Swivel mounting on bearing cap Cylinder barrel Velocity control Integrated flow control at both ends Position sensing For proximity sensor Piston rod end External thread with rod clevis Operating pressure 1 bar … 10 bar Mode of operation Double-acting Operating medium Compressed air as per iso 8573-1:2010 [7:4:4] Information on operating and pilot media Operation with oil lubrication possible (required for further use) Corrosion resistance class (CRC) 0 – No corrosion stress LABS conformity VDMA24364-B2-L Ambient temperature -10 °c … 60 °c Impact energy in the end positions 1.8 J Cushioning length 30 mm Theoretical force at 6 bar, retracting 2721 N Theoretical force at 6 bar, advancing 3016 N Moving mass at 0 mm stroke 1651 g Additional weight per 10 mm stroke 65 g Basic weight with 0 mm stroke 4185 g Additional moving mass per 10 mm stroke 39 g Alternative connections See product drawing Type of mounting With swivel mounting on bearing cap With accessories Pneumatic connection Rc3/8 Rod clevis material Cast steel Tempered steel Note on materials rohs-compliant Scraper material Bronze 1/14/22 – Subject to change – Festo AG & Co. KG 1/2 Feature Value Cover material Die-cast aluminum
Anodized
Seals material NBR
Piston rod material Tempered steel
Hard-chrome-plated
Material of cylinder barrel Wrought aluminum alloy
Anodized
