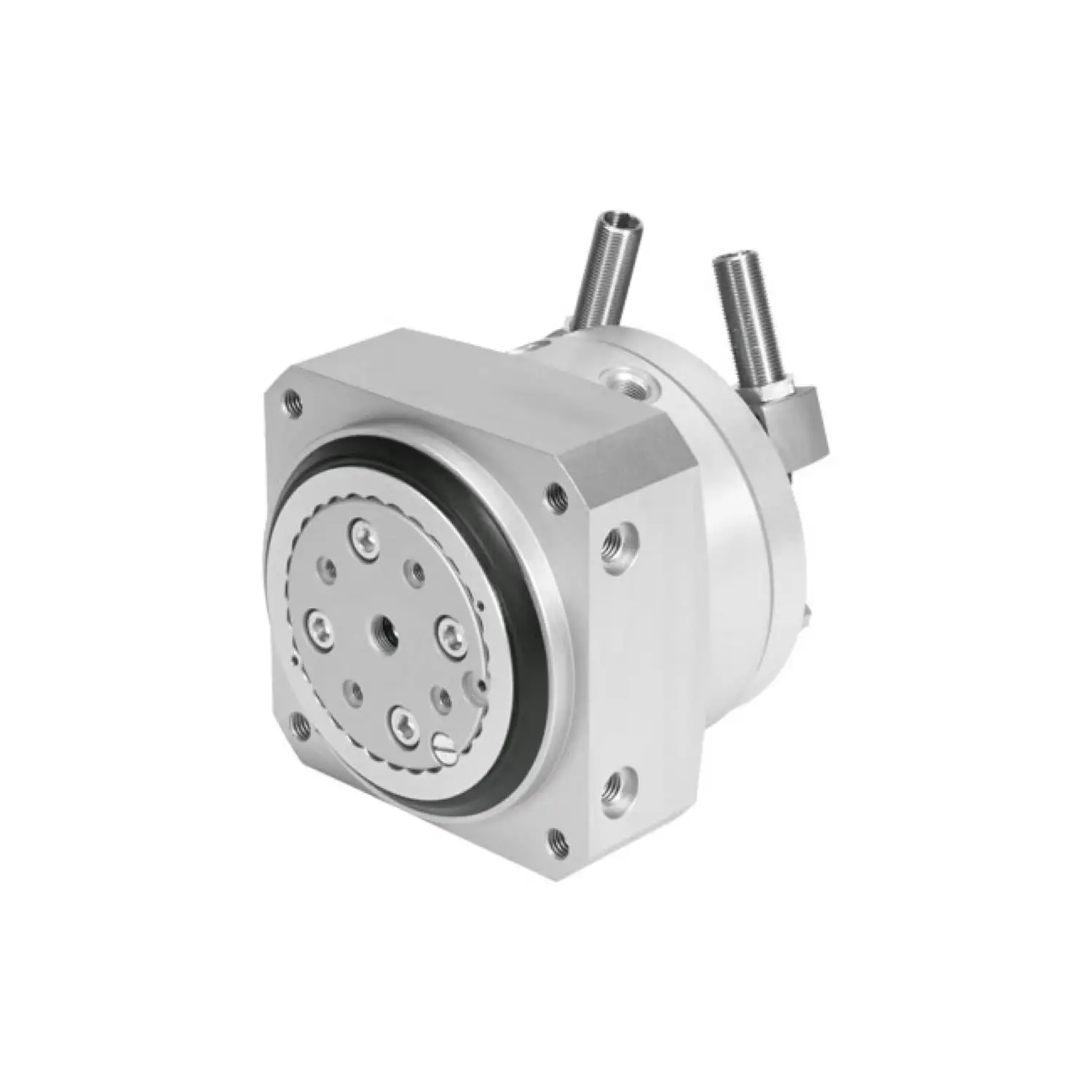

FESTO DSM-32-270-P1-HD-A-B

Description

Size 32 Cushioning angle 6.5 deg Adjustment range of swivel angle 0 deg … 246 deg Swivel angle 0 deg … 246 deg Cushioning Elastic cushioning rings/pads at both ends with fixed stop Mounting position Any Precision adjustment -6 deg Mode of operation Double-acting Structural design Rotary vane Position sensing For proximity sensor Symbol 00991265 Operating pressure 2 bar … 10 bar Max. swivel frequency at 6 bar 1.5 Hz Operating medium Compressed air as per iso 8573-1:2010 [7:-:-] Corrosion resistance class (CRC) 0 – No corrosion stress Ambient temperature -10 °c … 60 °c Max. axial force 450 N Max. radial force 550 N Theoretical torque at 6 bar 10 Nm Permissible mass moment of inertia 0.075 kgm² Product weight 2035 g Type of mounting With internal thread Pneumatic connection G1/8 Note on materials Free of copper and PTFE rohs-compliant Drive shaft material Steel Nickel-plated Seals material TPE-U(PU) Housing material Wrought aluminum alloy
