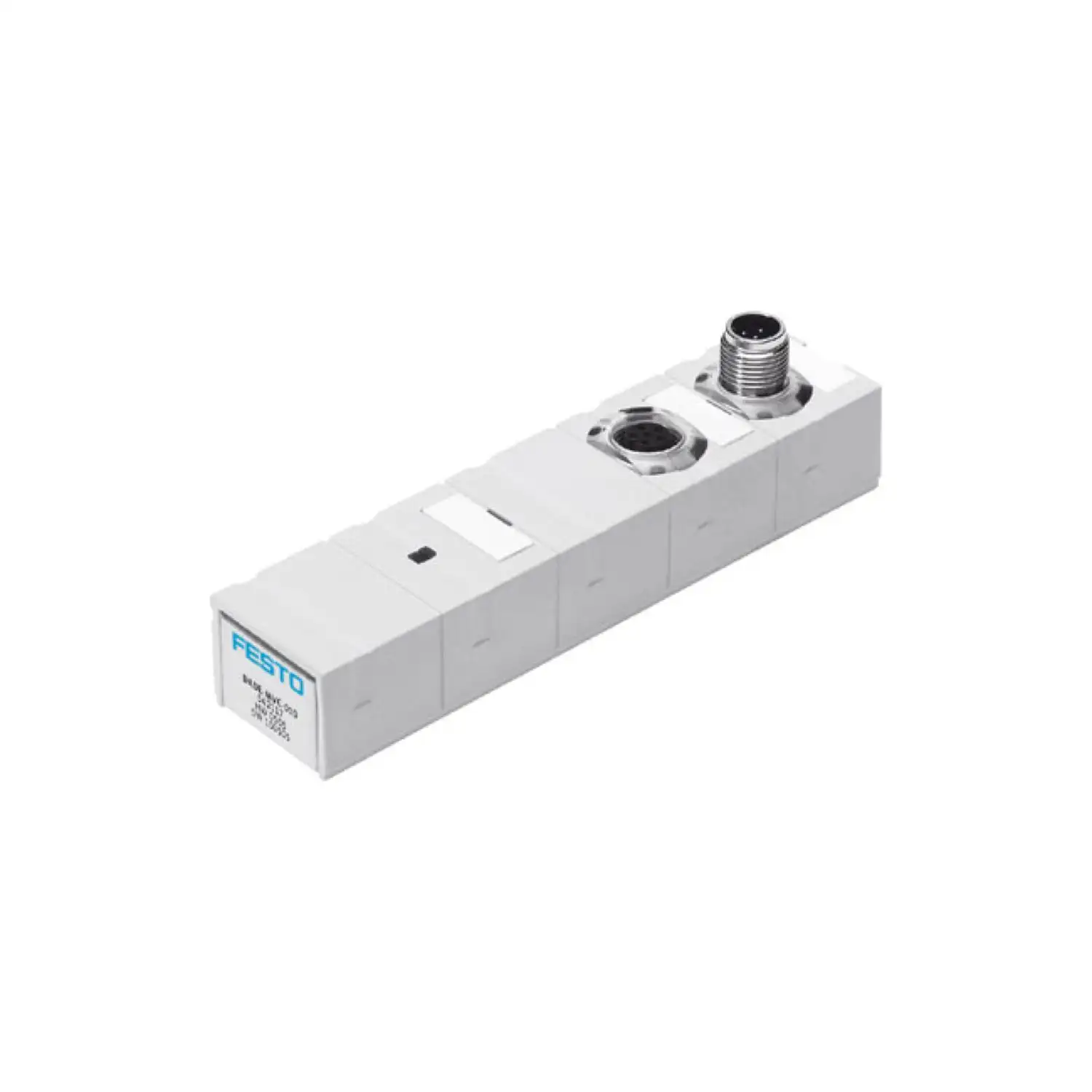

FESTO DADE-MVC-420

Description

Diagnostic function Indication via LED Mounting position Any Short-circuit protection yes Reverse polarity protection for PLC plug S1 Repetition accuracy Min. ±0.1 mm Analog output 4 – 20 mA as per EN 61131-2 Power supply requirement PELV Debounce time at inputs 3 ms Nominal operating voltage DC 24 V Power failure buffering of logic voltage 10 ms Residual ripple 4 Vss Current consumption at nominal operating voltage 20 mA … 30 mA Permissible voltage fluctuations +/- 25 % Certification RCM compliance mark KC characters KC EMC CE marking (see declaration of conformity) As per EU EMC directive As per EU rohs directive Corrosion resistance class (CRC) 1 – Low corrosion stress Storage temperature -20 °c … 70 °c Relative air humidity 95 % Non-condensing Degree of protection IP65 IP67 Ambient temperature 0 °c … 55 °c Product weight 128 g Linearity error FS 0.2 % Characteristic curve outputs as per EN 61131-2 Input characteristics as per EN 61131-2 Input switching logic PNP (positive switching) Switching logic at outputs PNP (positive switching) Electrical connection, displacement encoder M12 Socket 8-pin Electrical connection PLC M12 Plug 8-pin Type of mounting With through-hole Housing material PBT-reinforced
